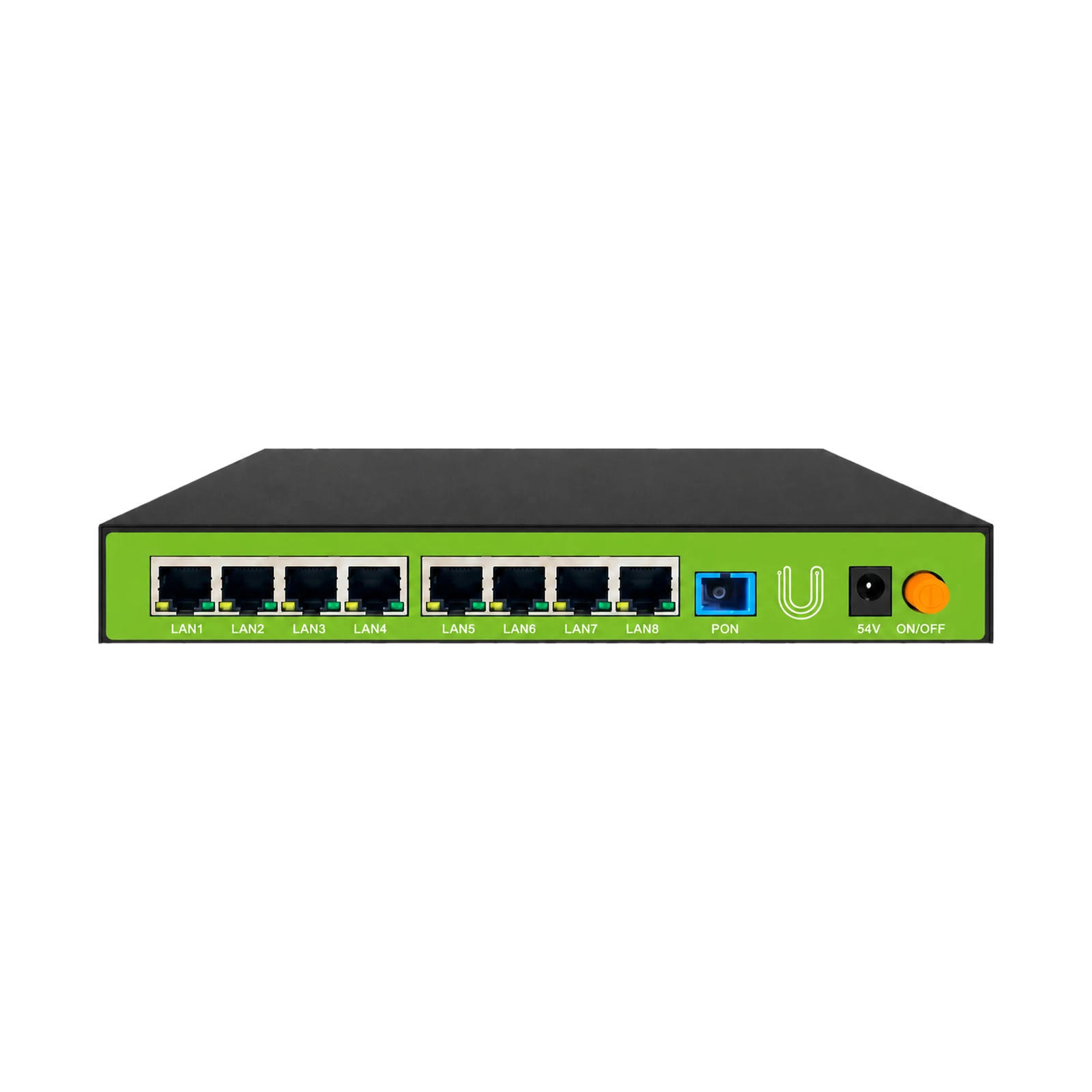

The FiberTrix-8 is a desktop PON MDU (multi-dwelling unit) that terminates one dual-mode XPON drop — GPON or EPON — and delivers eight Gigabit Ethernet ports with IEEE 802.3af/at PoE+ on every port, for offices, desk clusters and small sites.
One SC/UPC port runs GPON (Class B+, ITU-T G.984) or EPON (PX20+, IEEE 802.3ah) in dual mode — the same box serves GPON and EPON networks, 20 km reach.
All eight Gigabit ports supply IEEE 802.3af/at PoE+ at up to 30 W, fed by the included 54 V DC adapter (≤130 W) — cameras, APs and phones power straight off the fiber drop.
DDoS protection, ACL / MAC / URL filtering and unauthorized-ONU detection guard the access edge.
OMCI management from the OLT, plus Web, Telnet and CLI locally; automatic detection, configuration and firmware upgrade.
Dying-gasp, port loop detection and Ethernet port loss alarms surface problems before users call.
IGMP v1/v2 with snooping, up to 8 multicast VLANs and 64 groups — IPTV at the desk without flooding the drop.
One PON drop per floor or riser: the FiberTrix-24 serves 24 powered Gigabit ports to units, offices and building systems from a single 1U box.
Fiber to the office and the desk — eight PoE+ ports at the workspace for IP phones, PCs and wireless APs, on GPON or EPON alike.
Every port supplies PoE+ up to 30 W, so cameras and APs power straight off the fiber drop — no local power supplies to install or maintain.
Every value below is from the official FiberTrix-8 datasheet (R01).
| PON interface | |
| PON port | 1× XPON, dual mode — GPON Class B+ / EPON PX20+ |
|---|---|
| Connector / fiber | SC/UPC, single-mode |
| Wavelength | TX 1310 nm, RX 1490 nm |
| TX optical power | 0 to +4 dBm |
| RX sensitivity | −27 dBm |
| Overload optical power | −8 dBm (GPON) · −3 dBm (EPON) |
| Transmission distance | 20 km |
| Standards | ITU-T G.984 (GPON), IEEE 802.3ah (EPON) |
| User ports & PoE | |
| User ports | 8× GE RJ45, auto-negotiation — all PoE / PoE+ |
| PoE standard | IEEE 802.3af / 802.3at, up to 30 W per port |
| Indicators | Power, PON, LOS, SYS, LAN1–8 |
| Software | |
| Management | Web, Telnet, CLI; OMCI from the OLT; automatic detection, configuration and firmware upgrade |
| VLAN | Tag / transparent / trunk modes (up to 8 VLANs) |
| QoS | 4 queues, SP / WRR scheduling, IEEE 802.1p |
| Security | DDoS protection; ACL / MAC / URL filtering; unauthorized ONU detection |
| Multicast | IGMP v1/v2, IGMP snooping; up to 8 multicast VLANs, 64 groups |
| Alarms | Dying gasp, port loop detection, Ethernet port loss |
| Power & physical | |
| Power adapter | External AC-DC adapter, 54 V DC / 2.4 A |
| Power supply | ≤130 W |
| Dimensions (L × W × H) | 205 × 125 × 28 mm |
| Net weight | 0.615 kg |
| Operating environment | −10 °C to +55 °C; 10%–90% RH, non-condensing |
| Storage environment | −30 °C to +70 °C; 10%–90% RH, non-condensing |
The FiberTrix-8 speaks GPON and EPON in dual mode on one XPON port and is OMCI-managed from the OLT — standards-based on ITU-T G.984 and IEEE 802.3ah.
Desktop PON MDU with PoE+ on every GE port. Contact UGrid to confirm the configuration for your OLT and ODN.
Need 24 ports, a 1U rackmount or XGS-PON? See the FiberTrix-24 ordering information.
Same job at two scales — the desktop FiberTrix-8 for a workspace or small site, the 1U FiberTrix-24 for a building or cabinet. Full details on the FiberTrix-8 page and the FiberTrix-24 page.
| FiberTrix-8 | FiberTrix-24 | |
|---|---|---|
| PON | XPON dual mode — GPON / EPON | PON SFP slot — GPON / XG-PON / XGS-PON by module |
| User ports | 8× GE, all PoE+ | 24× GE, all PoE+ |
| PoE budget | 54 V DC adapter, ≤130 W supply | 370 W total, AC powered |
| Form factor | Desktop, 205 × 125 × 28 mm | 1U 19-inch, 442 × 216.2 × 43.6 mm |
| Operating temperature | −10 °C to +55 °C | −30 °C to +60 °C |
The FiberTrix-8 is a desktop PON MDU (multi-dwelling unit): it terminates one dual-mode XPON fiber drop — GPON or EPON — and delivers eight Gigabit Ethernet ports with IEEE 802.3af/at PoE+ to an office, desk cluster or small site.
Yes: its XPON port runs GPON or EPON in dual mode (ITU-T G.984 / IEEE 802.3ah), Class B+ / PX20+, over a single SC/UPC fiber with a 20 km reach.
Any IEEE 802.3af/at device — IP cameras, wireless APs, IP phones — up to 30 W per port on all eight ports. The unit is fed by the included 54 V DC / 2.4 A adapter, with a power supply rating of up to 130 W.
It is standards-based and OMCI-managed for mainstream GPON and EPON OLTs, including UGrid's U5 and U8 GPON OLTs and the U10 combo OLT in GPON mode.
Tell us the PON flavor, the port count and what the ports have to power — our team typically responds within 2 business days.
